Gebosun® Smart Lighting 4G/LTE Solution for Street Light

Short Description:

Short Description:
ora-Mesh solution smart street light is consisting of single lamp controller and dimming driver.It uses base station provided by local network operator.no need to install gatewavs.No limit on the number of lamp controllers andtransmission distance.Keep the entire street lighting system in view.


  • Street Light Model: 4G/LTE
  • Topological structure: Star(B5/B8/B20)
  • System Composition: SCCS Platform + Lamp controller of LTE series + LTE System
  • Product Detail

    Product Tags

    4G&LTE_01
    4G&LTE_04

    4G/LTE Solution

    4G&LTE0_08

    Star(B5/B8/B20)

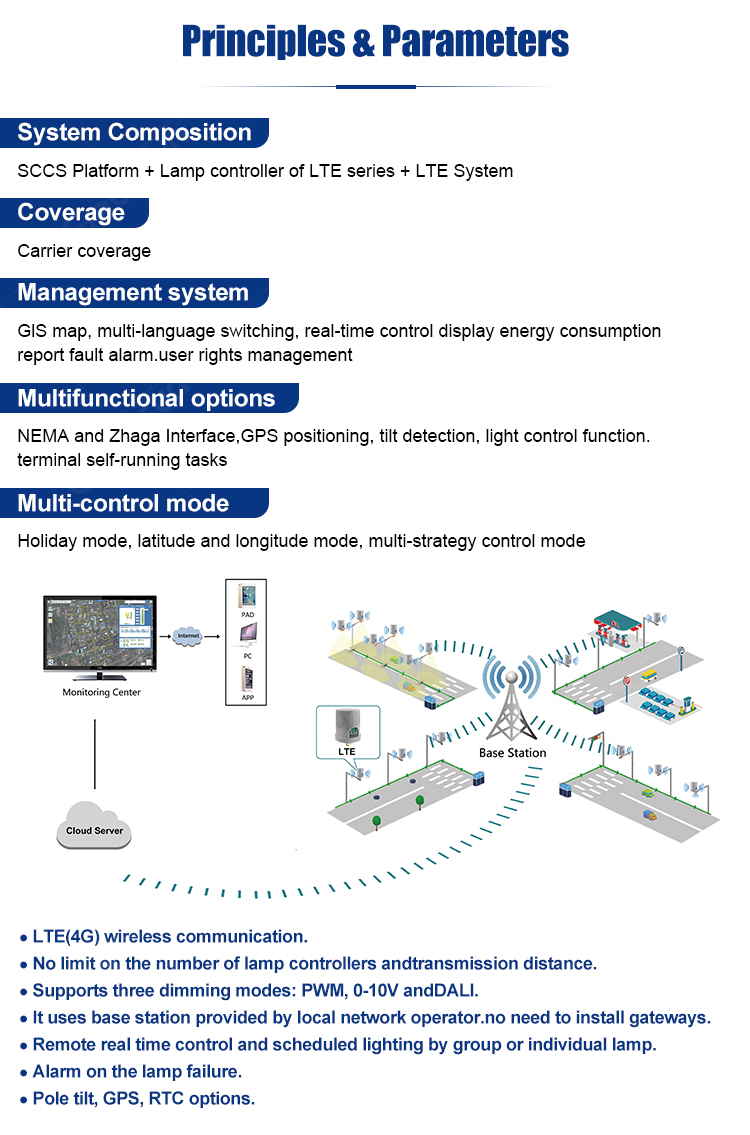

    SCCS Platform + Lamp controller of LTE series + LTE System

    Carrier coverage

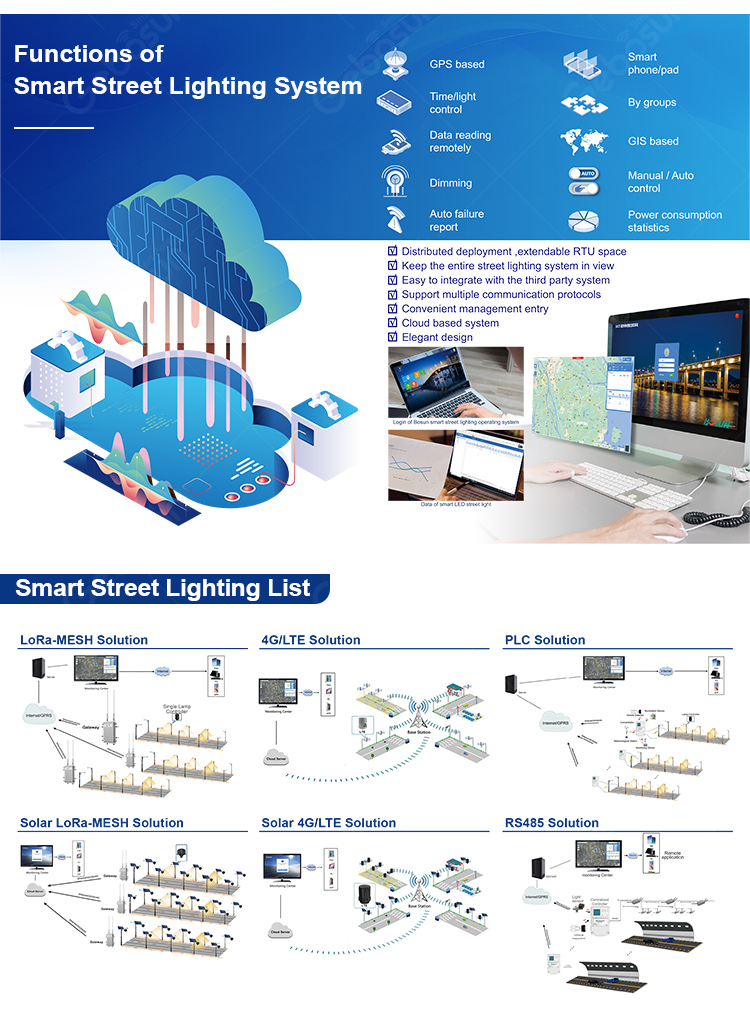

    GlS map, multi-language switching, real-time control display, energy consumption reportfault alarm.user rights management

    NEMA and Zhaga Interface,, GPS positioning, tilt detection, light control function. terminal self-running tasks

    Holiday mode, latitude and longitude mode, multi-strategy control mode

    ·LTE(4G) wireless communication.
    ·No limit on the number of lamp controllers andtransmission distance.
    ·Supports three dimming modes: PWM, 0-10V andDALI.
    ·lt uses base station provided by local network operator.no need to install gateways.

    ·Remote real time control and scheduled lighting bygroup or individual lamp
    ·Alarm on the lamp failure
    ·Pole tilt, GPS, RTC options

    4G&LTE_14
    4G&LTE_16
    4G&LTE_18

    Core Equipment

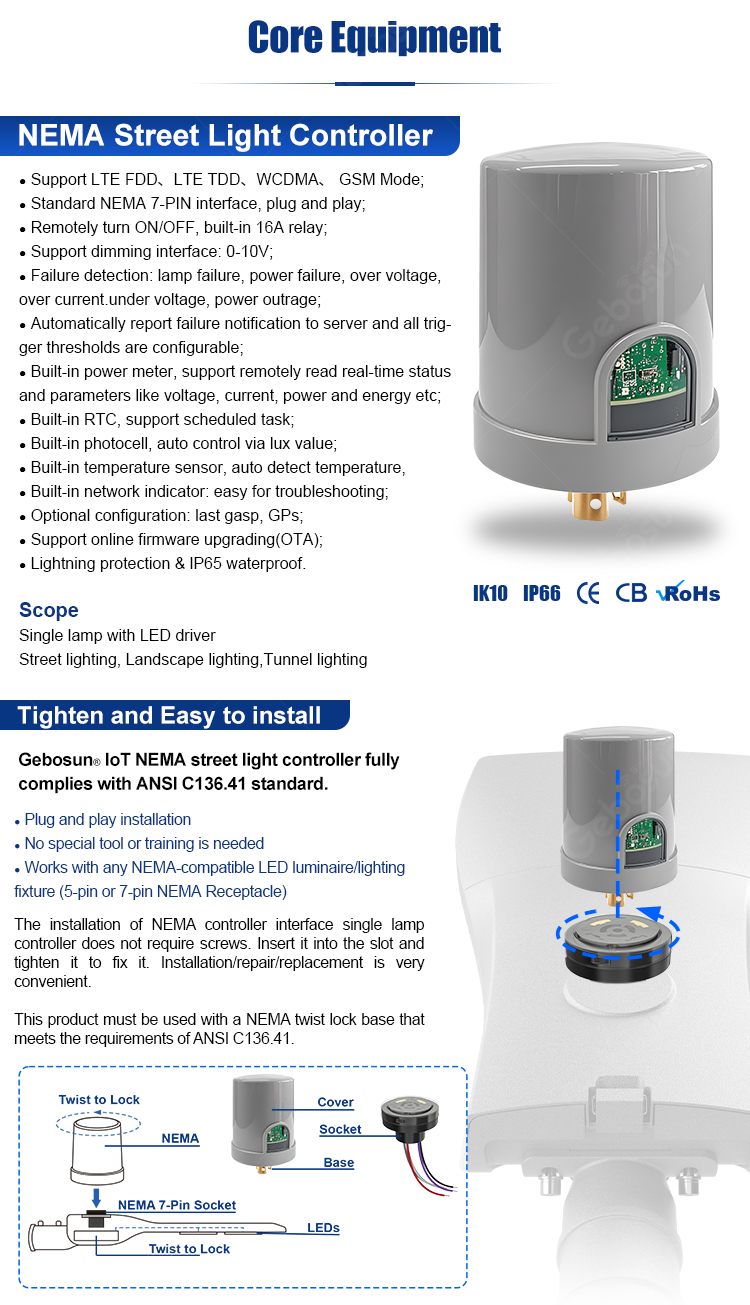

    Single lamp controller

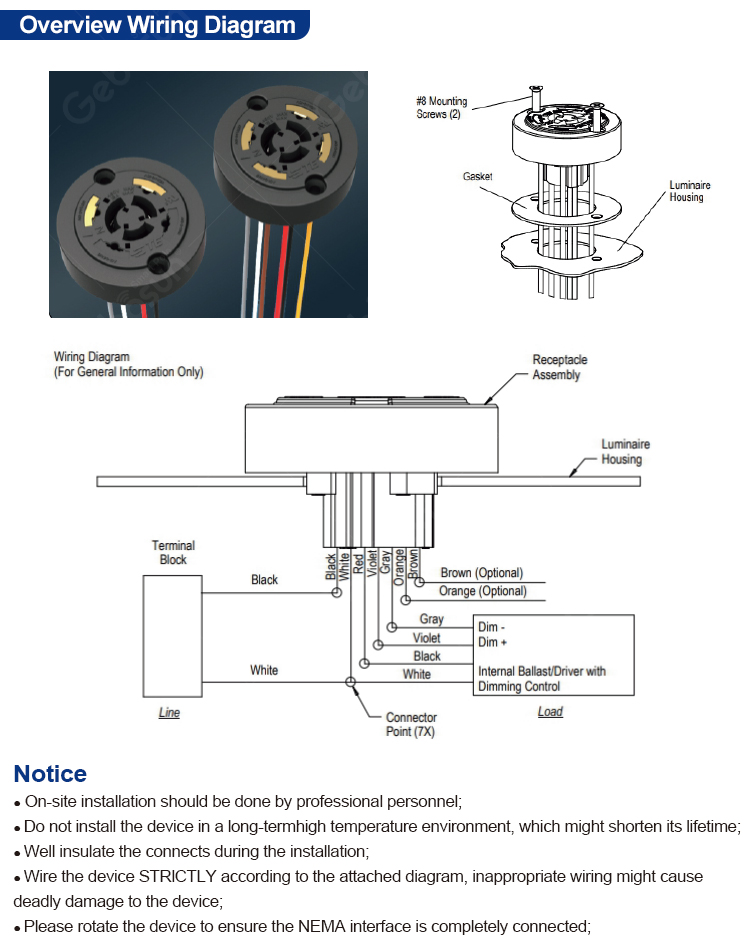

    Lamp controller with NEMA 7-PIN interface, work with 4G network.support DALI and 0-10V dimming.Support LTE FDD,LTE TDD, WCDMA, GSM Mode

    4G&LTE_22

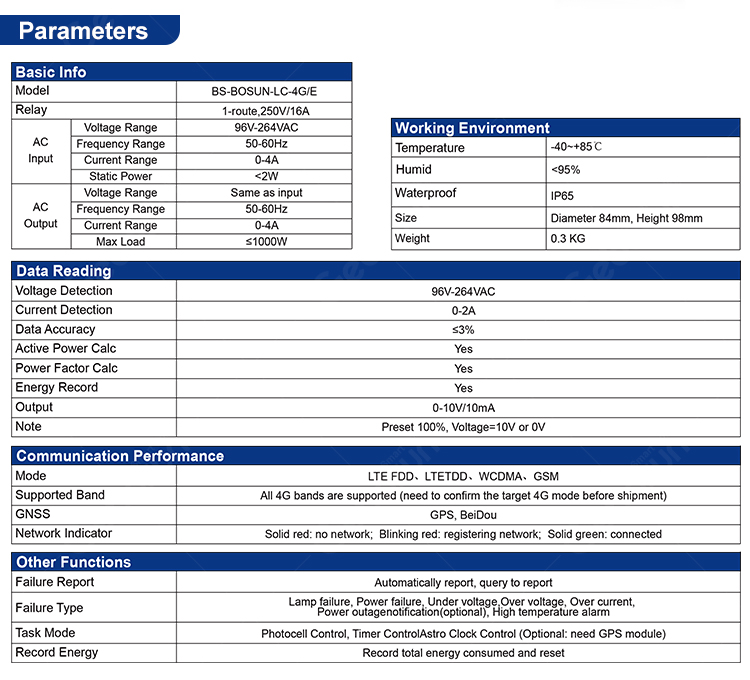

    BS-816LTE

    - Standard NEMA 7-PIN interface,plug and play
    - Remotely turn ON/OFF, built-in 16A relay.
    - Support dimming interface: DALI and 0-10V.
    - Failure detection: lamp failure, power failure, over voltageover
    current, under voltage, power outrage.
    - Automatically report failure notification to server and alltrigger
    thresholds are configurable.
    - Built-in power meter, support remotely read real-timestatus like
    voltage, current, power and energy, etc.
    - Built-in RTC, support scheduled task.
    - Built-in photocell, auto control via lux valuel.
    - Built-in temperature sensor, auto detect temperature
    - Built-in network indicator: easy for troubleshooting.
    - Optional configuration: last gasp, GPS.
    - Support online firmware upgrading (OTA)
    - Lightning protection & IP65 waterproof

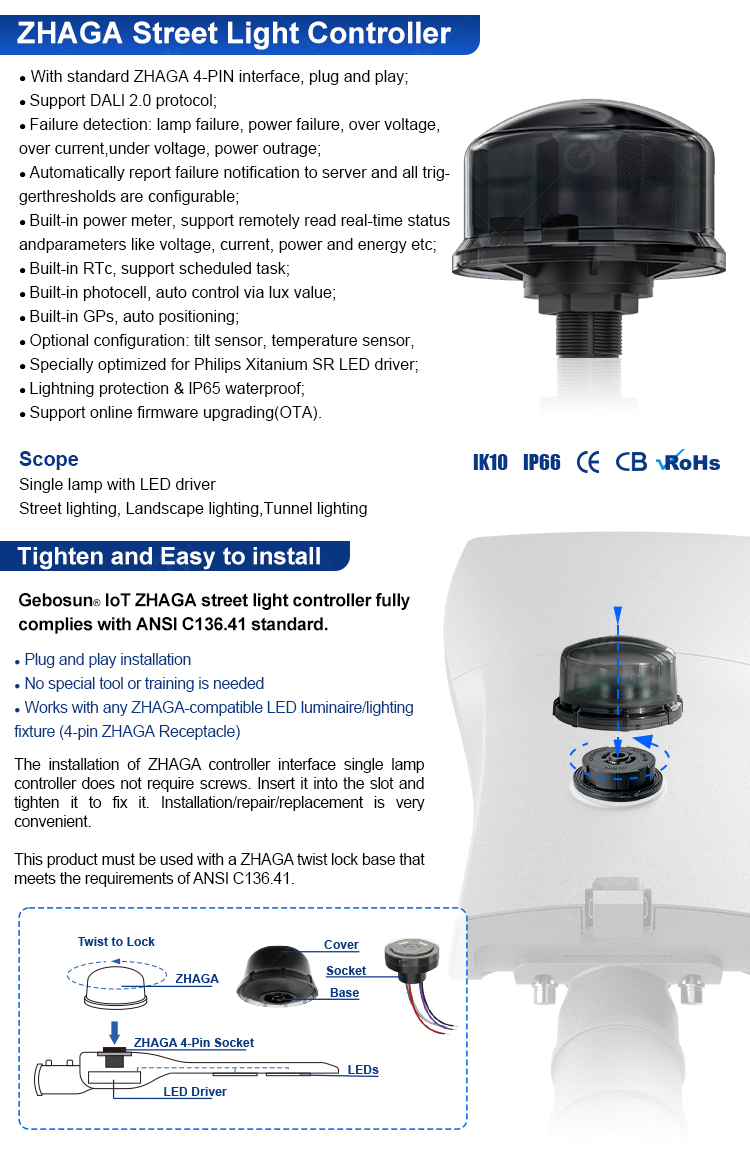

    Single lamp controller

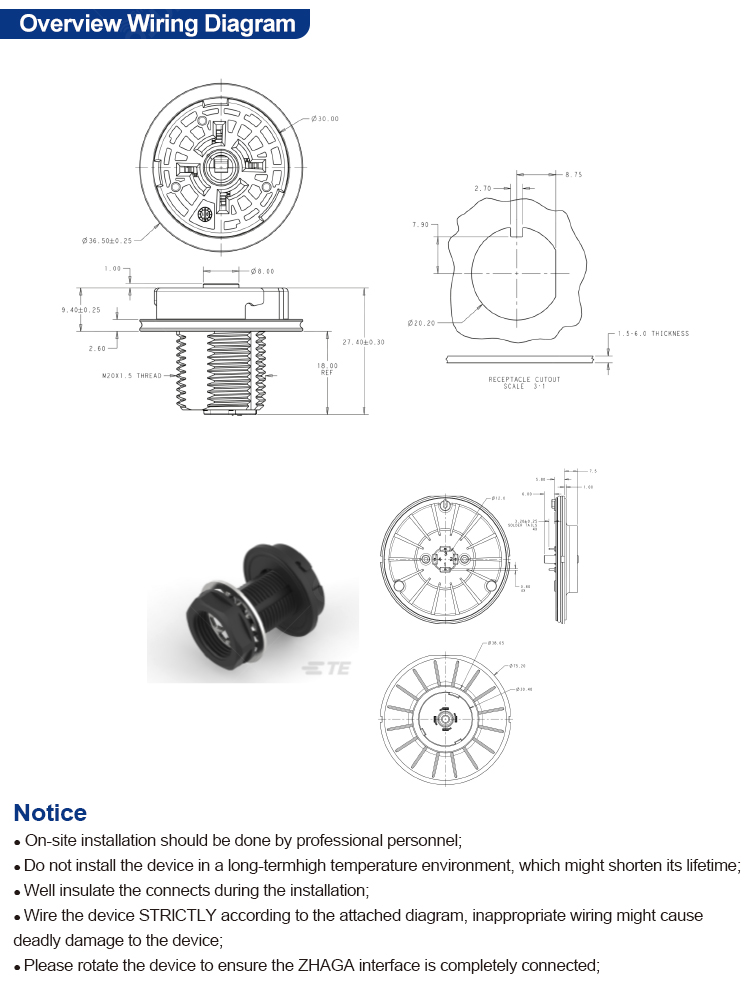

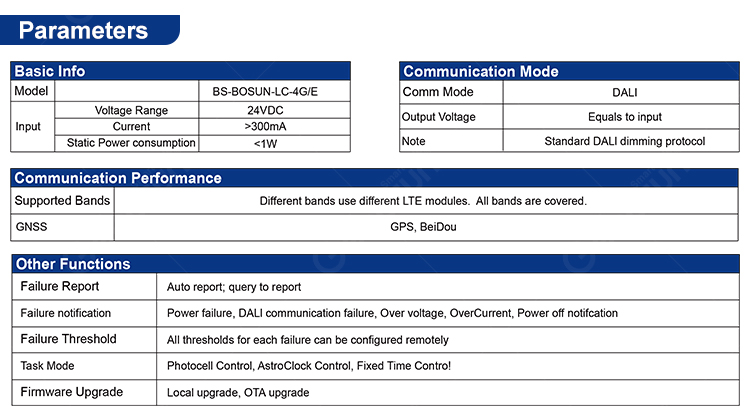

    Lamp controller with ZHAGA 4-PIN interface, work with local telecomnetwork, support DALI and 0-10V dimming.Support LTE FDD, LTE TDD, WCDMA and GSM

    4G&LTE_25

    BS-816M

    - With standard ZHAGA 4-PIN interface, plug and play.
    - Support DALI2.0 protocol.
    - Failure detection: lamp failure, power failure, over voltageover
    current, under voltage, power outrage.
    - Automatically report failure notification to server and alltrigger
    thresholds are configurable.
    - Built-in power meter, support remotely read real-timestatus like
    voltage, current, power and energy, etc.Built-in RTC,support
    scheduled task
    - Built-in photocell, auto control via lux value.
    - Built-in GPS, auto positioning.
    - Optional configuration: tilt sensor, temperature sensor.
    - Specially optimized for Philips Xitanium SR LED driver.
    - Lightning protection & IP66 waterproof.
    - Support online firmware upgrading (OTA)

    1-10v Dimming Driver 100W/150W/200W

    4G&LTE_28

    BS-Xi LP 100W/150W/200W

    - Ultimate robustness, offering peace of mind and lower
    maintenance costs
    - Long lifetime and high survival rate
    - Energy savings through high efficiency
    - Balanced configurable feature setcovering the most common
    applications
    - Superior thermal management
    - Consistent waterproof performance through the lifecycle
    - Easy to design-in, configure and install for Class I applications
    - SimpleSet®, wireless configuration interface
    - High surge protection
    - Long lifetime and robust protection against moisture,vibration
    and temperature
    - Configurable operating windows(AOC)
    - External control interface (1-10V) available
    - Digital Configuration Interface (DCI) via MultiOne Interface
    - Autonomous or Fixed time based (FTBD) dimming via integrated
    5-step DynaDimmer
    - Programmable Constant Light Output (CLO)
    - Integrated Driver Temperature protection

    Devices For 4G/LTE Solution

    4G&LTE_31

    Transformation of old street lamps

    With the development of society, the transformation of old street lamps has become one of the urban construction plans.

    LoRa-MESH_49

    The solution in most countries is to keep the street light poles and transform the lighting fixtures; or replace them with LED lamps made of environmentally friendly materials.or use solar energy-friendly lamps and lanterns. But no matter how the lamps are modified, they will save a lot of energy than the previous halogen lamps.



    LoRa-MESH_51

    As an important carrier of smart city, smart light pole can carry some other intelligent devices, such as CCTV camera, weather station, mini base station, wireless AP, public speaker, display, emergency call system, charging station, smart trash can, smart manhole cover, etc. It is easy to develop into a smart city.

    LoRa-MESH_53

    With BOSUN SSLS (Solar Smart Lighting System) & SCCS(Smart City Control System) stable operating system,these devices can operate efficiently and stably. The street lamp renovation project can be successfully completed.

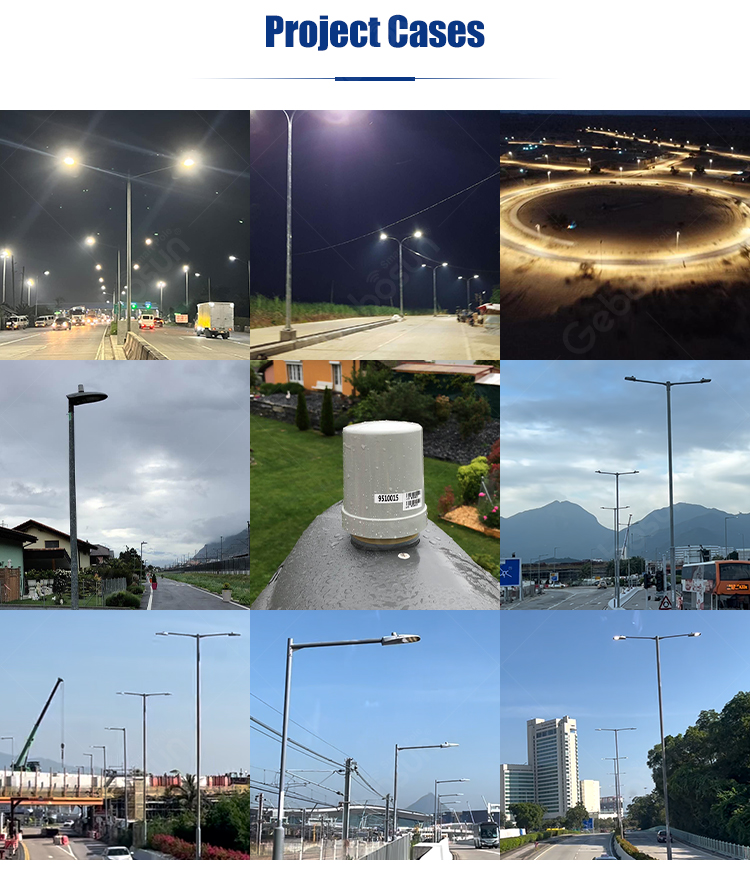

    Project

    4G&LTE_40

    Smart Lighting with 2G/4G solution in Malaysia

    At the early of 2022, we helped our customers in Malaysia to do a smart lighting project. We advise our client choose 2G/4G according to our customer demand,The customer is very satisfied with the solution we recommended. Compared with the general solar lighting, the advantage of the smart lighting system is that it is very easy to control, and it is a very important role in the smart city. They can adjust the brightness of the light at one time, which is very convenient , and can accurately find the positioning of each lamp, very easy to control We also have done many smart pole, smart lighting in other countries,such as Vietnam,The Philipines,Saudi Arabia,Chile,Thailand,China and etc,we have gain great feedback from our client. Now, we have gain positive feedback from our client, and now, we are going to help more country to build the smart city,and bring the smart lighting to the global,Let Bosun lighting light everywhere
